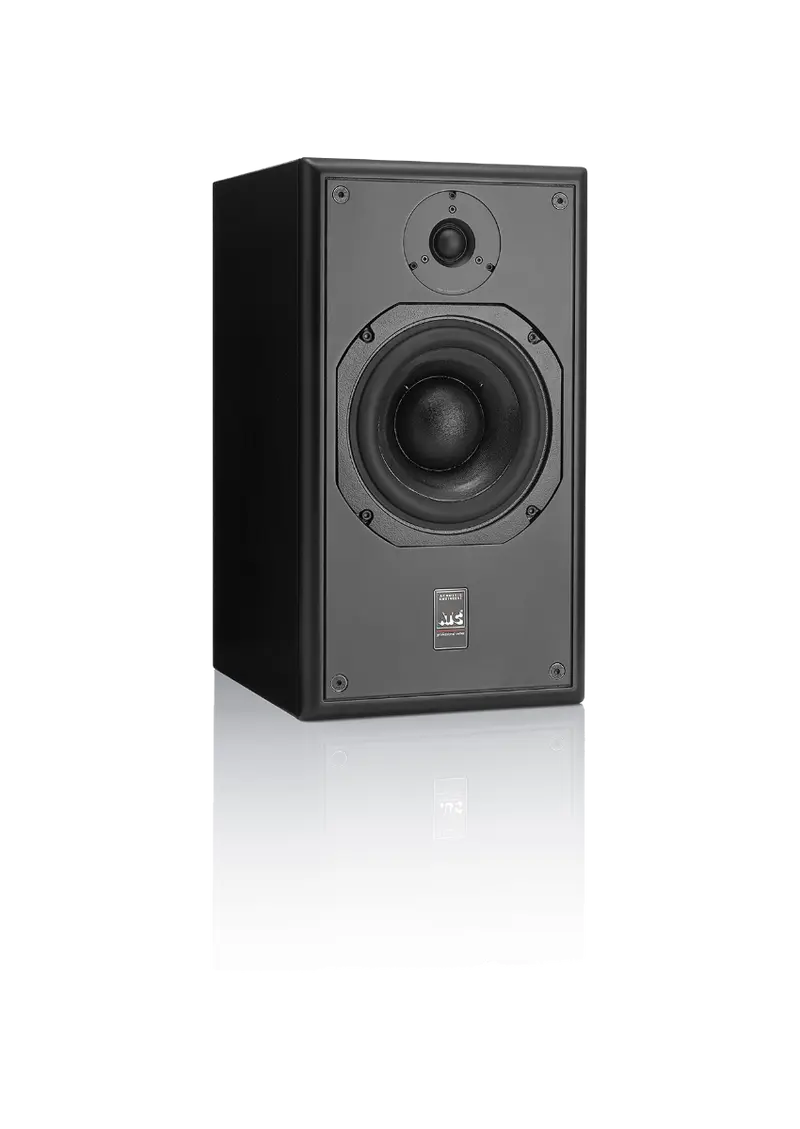

SCM20PSL Pro
Overview
- Compact very high performance passive 2-way studio monitor
- Ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms
– surround channels in medium-to-large control rooms
- Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
- Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
- Wide, even dispersion
SCM20PSL Pro
Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
Amplitude linearity : 80Hz – 20kHz (+/-2dB)
Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous SPL : 108dB (per pair @ 1m)
Crossover frequency : 2.5kHz
Recommended Amplifier Power: 75 to 300 Watts
Nominal Impedance : 8 Ohm
Connectors : 2 x Pairs Binding Posts/4mm Plugs – Bi-Wireable
Cabinet Dimensions (HxWxD) : 450x250x294mm (17.7″x9.8″x11.6″)
Weight : 18kg/39.7lbs (per cabinet)
