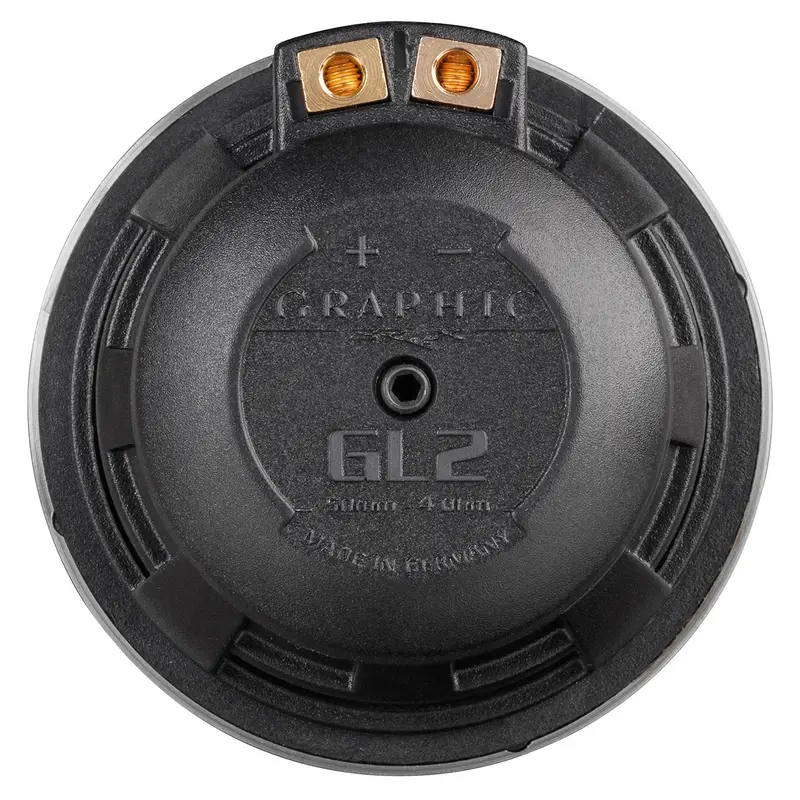

BRAX GRAPHIC GL2

Erinomaisen äänenlaadun omaava 50 mm / 2″ High-End keskiäänikaiutin Braxilta.

Ominaisuudet:
– Erinomainen äänenlaatu
– Avoin runkorakenne
– Kevyt alumiinikartio takaa avoimen ja selkeän äänen
– Kullatut liittimet
– Vain 26.8 mm asennussyvyys
– Kaiuttimien suojaritilät sisältyvät pakkaukseen
– Parihinta

Tekniset tiedot:
Power RMS / max. P80 / 120 Watts
(highpass 400 Hz at 24 dB/Oct.)
Impedance Z4 Ω
DC resistance Re3.1 Ω
Frequency response 400 Hz – 20.000 Hz
Resonance frequency Fs165 Hz
Mechanical Q factor Qms8.90
Electrical Q factor Qes0.55
Total Q factorQts0.52
ComplianceCms720 μm/N
Equivalent air volumeVas0.24 L
Force factor B*I2.6 Tm
Efficiency 1 W / 1 mSPL84 dB
Cone area Sd15 cm²
Moving mass Mms1.6 g
Cone material Aluminum cone
Mechanical resistance Rms0.13 kg/s
Voice coil diameterø19 mm / 0,75″
Voice coil winding height 5 mm / 0.2″
Max. linear excursion Xmax+/- 1.0 mm
Outer diameterø60 mm / 2.36″
Installation diameterø53 mm / 2.1″
Installation depth 26.8 mm / 1.1″

Recommended enclosure volumes
Sealed box with minimum 250 ml net volume

Net volumes Recommended DSP / amplifier settings
0.25 liter (System resonance: 200 Hz) Crossover frequency: 600 Hz
Min. filter slope: 12 dB/Oct.
0.5 liter (System resonance: 155 Hz) Crossover frequency: 450 Hz
Min. filter slope: 12 dB/Oct.
0.75 liter (System resonance: 140 Hz) Crossover frequency: 300 Hz
Min. filter slope: 24 dB/Oct.
