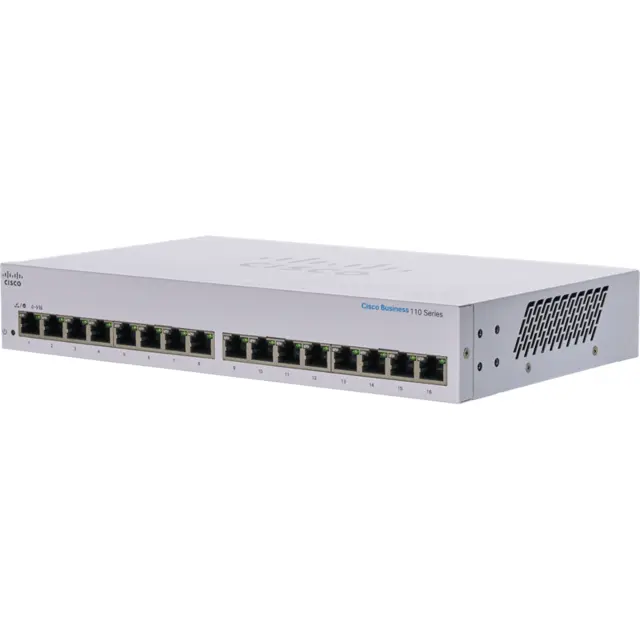

Cisco CBS110 16-Port Desktop Switch

The Cisco Business 110 Series CBS110-16T is an unmanaged 16-port Gigabit Ethernet switch designed to deliver robust, plug-and-play network connectivity for small businesses and home offices. Offering up to 32 Gbps switching capacity in a silent, fanless design, it effortlessly handles high-bandwidth tasks without demanding complex configuration.

The Cisco Business CBS110-16T unmanaged switch offers high-speed, reliable Gigabit Ethernet connectivity to empower small offices, workgroups, and expanding businesses. With 16 auto-sensing 10/100/1000 Base-T RJ-45 ports, it delivers instantaneous data transfer speeds that support demanding bandwidth applications, large file transfers, and smooth video conferencing.

Built for seamless plug-and-play deployment, the switch requires no complex software setup or ongoing management. Simply connect your devices, and the switch automatically detects the correct cable configuration and speeds using integrated auto-uplink (auto MDI/MDI-X) and cable diagnostic functions.

Engineered with a fanless architecture, the CBS110-16T operates completely silently, making it ideal for noise-sensitive environments such as open-plan offices, conference rooms, and retail spaces. Its compact form factor offers flexible installation options, easily mounting into a standard rack, onto a wall, or directly on a desktop.

Advanced traffic handling capabilities, including Quality of Service (QoS) and Weighted Round Robin (WRR) traffic prioritization, ensure delay-sensitive applications like voice and video maintain priority bandwidth. Head-of-line (HOL) blocking prevention and loopback detection safeguard network efficiency and stability.

Designed with energy conservation in mind, the switch incorporates IEEE 802.3az Energy Efficient Ethernet (EEE) standards to optimize power usage based on traffic volume and link status, reducing operating costs without sacrificing performance.

• Device Type: Switch – 16 ports – unmanaged
• Enclosure Type: Desktop, rack-mountable, wall-mountable
• Subtype: Gigabit Ethernet
• Ports: 16 x 10/100/1000 Base-T RJ-45
• Performance: Switching capacity: 32 Gbps, Forwarding performance (64-byte packets): 23.8 Mpps
• MAC Address Table Size: 8K entries
• Jumbo Frame Support: 9216 bytes
• Processor / Memory: ARM 400 MHz processor, 128 MB RAM, 16 MB flash memory
• Buffer Memory: 2 MB packet buffer
• Features: Weighted Round Robin (WRR), Quality of Service (QoS), Cable Diagnostics, Auto-uplink (auto MDI/MDI-X), Head-of-line (HOL) blocking prevention, Loopback detection, Fanless, Kensington security slot, Energy-Efficient Ethernet, Flow control
• Power Consumption: 11.53 W (operational)
• Power Supply: Internal power supply (50/60 Hz)
• MTBF: 2,685,092 hours
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p
