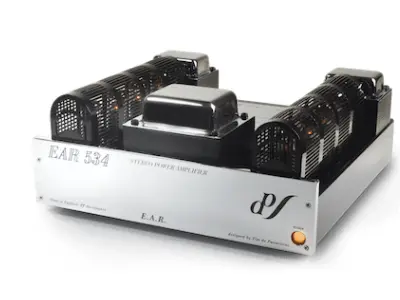

EAR 534
A Push-pull power amplifier with 50 watts per channel stereo utilising eight EL34 (four per channel) into 4, 8 and 16 ohms. Self-biasing operations with balanced or unbalanced inputs. Chrome facia.
50 Watts/Channel · Eight EL34s · Two ECC85 Valves · Two ECC83 Valves · Chrome Facia
Tekniset tiedot:
• Teho (4/8/16 ohm): 50 W
• Häiriöetäisyys: 92 dB
• Keskeismodulaatiosärö (I.M.D.): Alle 1 % (10 mW – 50 W)
• Tehonkulutus: 260 W
• Mitat (L/K/S): 405 x 150 x 405 mm
• Paino: 20 kg
• Putket: 2 x ECC83, 2 x ECC85, 8 x EL34 (6L6, KT66)
