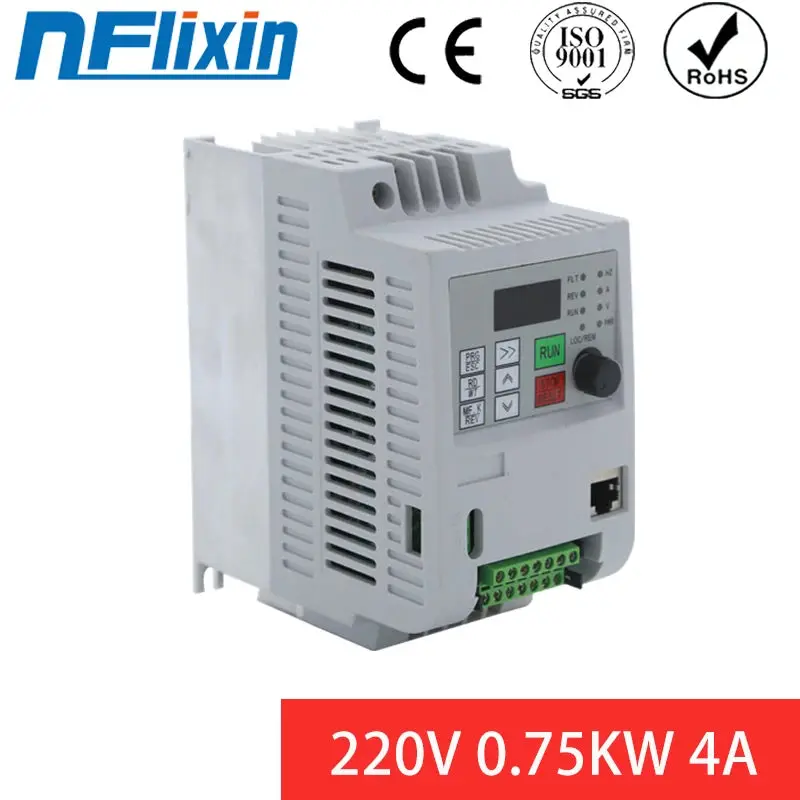

The NFLIXIN 9600D is a versatile variable frequency drive designed to convert single-phase 220V input power into three-phase 220V output for robust motor speed regulation. Featuring advanced sensorless vector control and a broad output frequency span from 0 to 400Hz, it provides efficient, reliable drive control for various industrial and domestic AC motor applications.
The NFLIXIN 9600D variable frequency drive seamlessly converts single-phase 220V AC input electricity into three-phase 220V AC power. This functionality allows standard three-phase AC induction motors to operate smoothly from single-phase utility or domestic outlets without requiring complex grid alterations or dedicated polyphase connections.
Engineered with both Sensorless Vector Control (SVC) and standard V/F control modes, the unit delivers high low-end torque, precise velocity regulation, and fast dynamic response. An adjustable output frequency range spanning 0 to 400Hz offers broad speed modulation capabilities for machinery needing exact operational tuning.
Integrated multi-step automation allows up to 16 distinct pre-configured speed profiles with automated sequencing, streamlining repetitive process cycles. Built-in PID regulation supports reliable closed-loop control over variables such as fluid pressure, air flow, and mechanical tension, maximizing process precision and system autonomy.
The inverter features built-in RS485 serial communication, enabling direct integration into industrial automation networks, PLCs, and remote supervisory systems. Over 25 specialized hardware and software safety mechanisms are standard, providing full-spectrum protection against over-current, over-voltage, phase loss, under-voltage, over-temperature, and motor overload conditions.
Crafted with an industrial flame-retardant ABS chassis, an all-aluminum thermal heatsink, and a high-flow cooling fan, the unit ensures durable thermal management in demanding environments. The motherboard is treated with an advanced three-proof conformal coating, safeguarding internal electronics against dust, ambient humidity, and contaminants.
- Brand: NFLIXIN
- Model Series: 9600D
- Model Number: 9600D-1T-00150G
- Rated Power: 1.5 kW
- Rated Current: 7 A
- Input Voltage: 1-phase AC 220V ±15%
- Input Frequency: 50/60 Hz
- Output Voltage: 3-phase AC 0–220V
- Output Frequency Range: 0–400 Hz
- Control Modes: Sensorless Vector Control (SVC), V/F Control
- Multi-Speed Control: 16-step programmable speed stages
- Process Regulation: Integrated PID controller
- Communication Protocol: Built-in RS485 interface
- Protection Features: 25 fault protection functions including over-current, over-voltage, under-voltage, overload, phase loss, and over-temperature
- Housing Material: Flame-retardant ABS with all-aluminum heatsink
- Board Protection: Three-proof conformal coating against dust and moisture
- Ingress Protection: IP20
