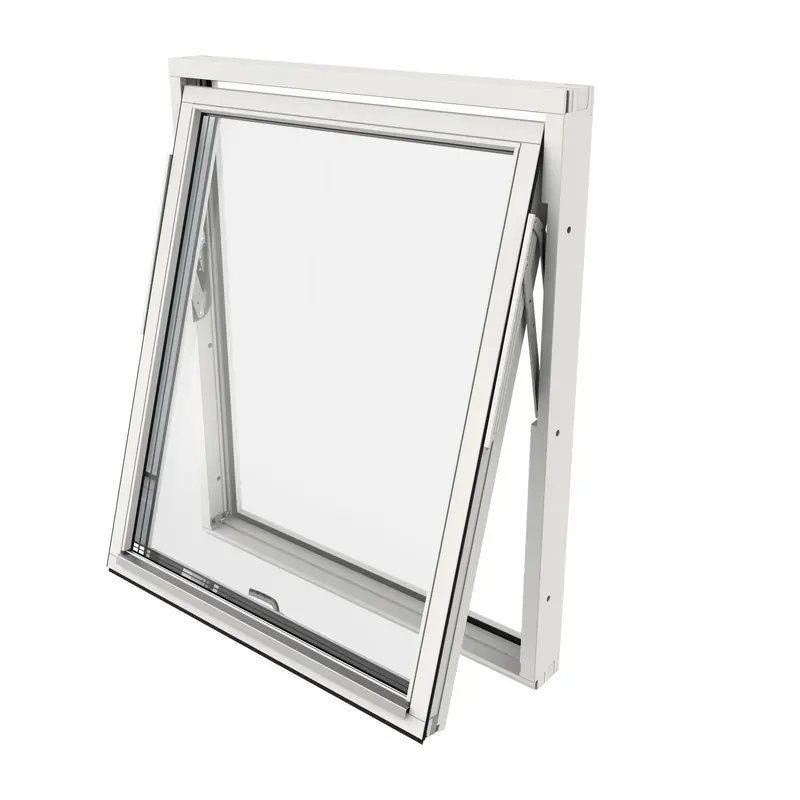

High-performance wooden horizontally pivoting window equipped with triple energy glazing with argon gas and a 180-degree reversible sash for easy, safe exterior cleaning.
The Outline 3-Glass Wood Reversible Window (HF) is a premium Scandinavian-style window engineered from laminated pine, designed to combine traditional wooden aesthetics with superior modern insulation. Its factory-finished white coating (NCS S 0502-Y) ensures a timeless look that harmonizes smoothly with modern and classic architectural facades alike.
Engineered with a versatile 180-degree pivoting sash, this window allows the exterior glass surface to be fully rotated towards the interior room. This provides safe, effortless cleaning from inside the building without the need for exterior ladders or scaffolding. The opening mechanism includes a secure two-hand safety release catch to prevent accidental over-extension.
Equipped with a triple-glazed insulated glass unit featuring low-emissivity glass and argon gas filling, this window offers outstanding thermal efficiency with a standard U-value of 1.2 W/m²K. The multi-pane configuration dramatically cuts down heating losses and helps maintain a comfortable, balanced indoor climate throughout every season.
Sound insulation is naturally enhanced by the triple-pane glass structure and tightly sealed frame construction, delivering an acoustic reduction rating of Rw 33 dB. This ensures a peaceful indoor environment by significantly reducing traffic, wind, and ambient neighborhood noise.
Built to withstand harsh Nordic weather conditions, the frame and sash structure is rated Class 4 for airtightness, Class 9A for water tightness, and Class 4C for wind resistance. It also includes an integrated fixed-ventilation stop for secure everyday airing.
- Window Type: Horizontally pivoting reversible window (HF)
- Frame Material: Laminated pine
- Modular Dimensions: 130 x 130 cm
- Outer Frame Dimensions: 128 x 128 cm
- Frame Depth: 105 mm
- Glazing: Triple-glazed insulating unit (Low-E glass + Argon gas)
- Standard U-Value: 1.2 W/m²K
- Sound Reduction: Rw 33 dB
- Rotation Range: 180 degrees reversible sash
- Child Safety: Integrated two-hand safety release catch
- Ventilation: Locked fixed ventilation position
- Airtightness: Class 4
- Watertightness: Class 9A
- Wind Load Resistance: Class 4C
- Finish: Factory painted white (NCS S 0502-Y)
