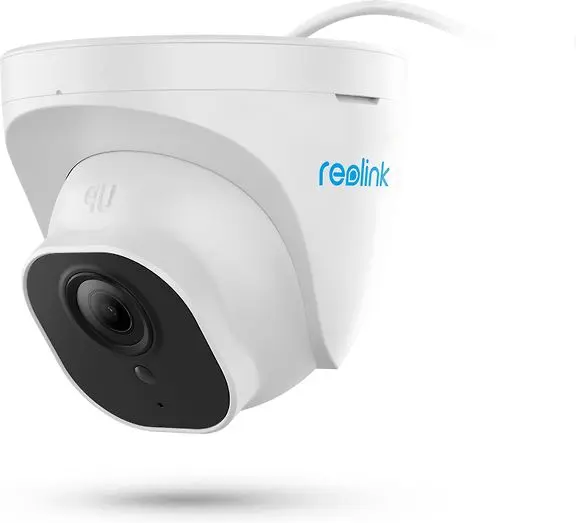

Reolink RLC-520A PoE Surveillance Camera for Outdoor and Indoor Use

The Reolink RLC-520A PoE surveillance camera offers 2560×1920 resolution, intelligent motion detection for people and vehicles, and night vision up to 30m, making it ideal for both indoor and outdoor security.

The Reolink RLC-520A PoE surveillance camera is designed for versatile outdoor and indoor use. Its innovative Easy Dome design eliminates the traditional glass dome, allowing for effortless adjustment of the camera’s viewing direction without the need for tools. With a high resolution of 2560×1920, a memory card slot, intelligent motion detection, and NVR compatibility, this camera provides comprehensive surveillance capabilities.

This weatherproof Reolink RLC-520A camera is conveniently powered directly through a single network cable (power supply not included), simplifying installation. It boasts powerful night vision with IR lights, extending its reach to approximately 30 meters in optimal conditions. The advanced intelligent motion detection feature can accurately distinguish between people and vehicles, significantly reducing false alarms and ensuring that notifications are relevant and actionable.

Equipped with a memory card slot supporting up to 256 GB (card sold separately), the camera enables local recordings triggered by motion detection, and uniquely supports continuous recording to the memory card. It also offers the flexibility to send images and videos to a user’s FTP server for additional storage. A built-in microphone ensures that audio is recorded alongside video, providing a more complete surveillance record.

A standout feature of the RLC-520A is its support for interval videos, also known as time-lapse. Users can set the camera to capture images at specific intervals, which are then automatically compiled into a video. This functionality opens up a myriad of creative and practical applications, such as monitoring construction project progress, observing plant growth, tracking traffic flow, or capturing stunning sunrises.

Managing and operating the camera is made simple with the intuitive Reolink app, available for both Android and iOS devices, with language options including Finnish, Swedish, and English. For desktop users, the Reolink Client application (macOS/Windows) provides robust control, and direct access via a web browser is also supported. The camera is compatible with Reolink NVR recorders (requiring version V2), though it’s important to note that interval video is not available when connected to an NVR system.

• Camera resolution: up to 2560 x 1920

• Image sensor: 1/2.7″ Glass lens, color CMOS sensor, 4 mm focal length, aperture F/2.0

• Field of view: 80° horizontal, 42° vertical

• Aspect ratio: 4:3

• H.264 compression

• Intelligent motion detection: identifies people and vehicles

• Interval video feature (time-lapse)

• Night vision: IR lights, range about 30 m

• Built-in microphone

• RJ45 network interface: 10/100M

• Power over Ethernet (PoE): IEEE 802.3af, 48V Active

• Network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

• FTP support: Sends images and videos to user’s FTP server

• Environmental rating: For indoor and outdoor use (IP66)

• Operating temperature: -20°C ~ 55°C

• Recording: to separately purchased microSD memory card (max. 256 GB), supports continuous recording

• Mobile app: available for Android and iOS platforms, app languages Finnish/Swedish/English

• Desktop app: Reolink Client app (macOS/Windows)

• Browser support: IE, Edge, Chrome, Firefox, Safari

• Voice Control: Google Assistant

• Compatibility: Compatible with 8/16 channel Reolink NVR recorders

• Power: DC 12.0V⎓1A, max power consumption 12W (power supply not included)

• Dimensions: Φ 105 x 93 mm

• Weight: 467.5 g
